If your current Garmin chartplotter or marine handheld is not compatible with the newer Garmin Navionics+ mapping format, BlueChart g3 Vision coastal charts deliver previous-generation premium cartography with integrated Garmin and Navionics content. Check chartplotter compatibility.
The BlueChart g3 Vision VPC020R covers Australia's southern coast from Brisbane, around the southeast and south of the continent, to Geraldton in Western Australia, including Sydney, Melbourne, Adelaide, Perth, and the Great Australian Bight. The chart card integrates Auto Guidance technology, high-resolution relief shading, 1-foot contours, satellite imagery, 3D views, and depth shading tools into one microSD/SD package for compatible Garmin chartplotters.
BlueChart g3 Vision coastal charts provide coverage, clarity, and detail with integrated Garmin and Navionics data and Auto Guidance technology. The VPC020R chart card combines multiple data layers, including vector cartography, high-resolution bathymetry, satellite photography, and 3D perspective views, into a single navigational package designed for Brisbane to Geraldton.

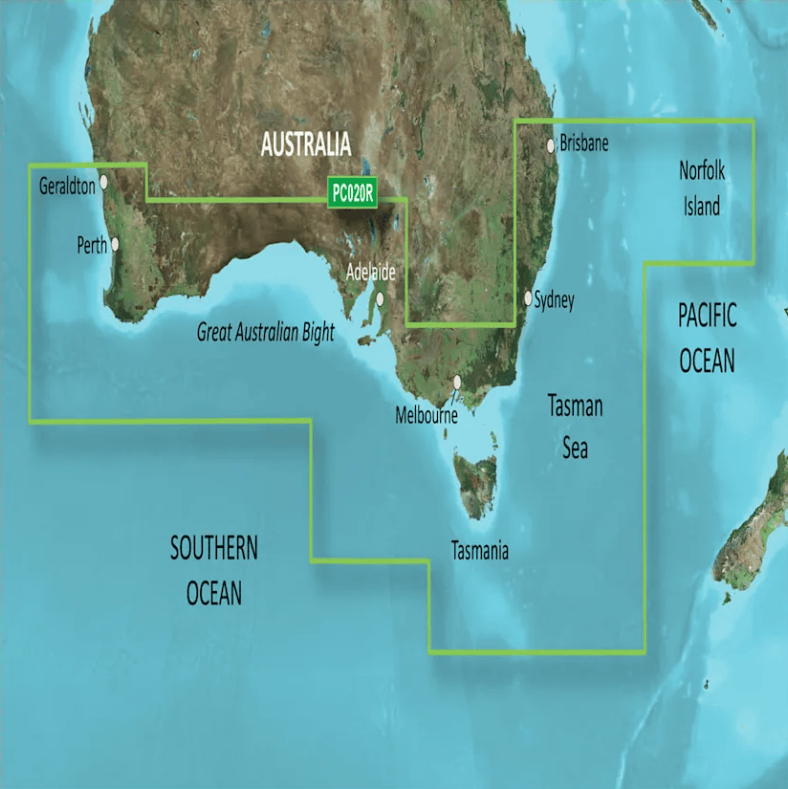

The VPC020R covers Australia's southern coastline, running from Brisbane south past Sydney, through Bass Strait, and west across the Great Australian Bight to Geraldton in Western Australia. This stretch includes the major population centers of the southeast, the exposed waters of Bass Strait and the approaches to Tasmania, the long and remote cliffs of the Bight, and the southwestern corner of the continent around Perth and Geraldton. The mix of busy commercial ports and long, exposed passages makes detailed charting and passage planning valuable throughout. Auto Guidance technology calculates suggested routes using vessel-specific draft and overhead clearance parameters.
Note: The areas outlined in color depict the approximate coverage areas of the relief shading data included in the Vision card.
Premier Coastal Charts
Experience unparalleled coverage and brilliant detail when you’re on the water. BlueChart g3 Vision coastal charts provide industry-leading coverage, clarity and detail with integrated Garmin and Navionics content.
Detailed coverage of the southern coast of Australia from Brisbane to Geraldton. Coverage includes Sydney, Melbourne, Adelaide, Perth, and the Great Australian Bight.
Whether fishing or cruising, select a spot and get a route showing the general path and nearby obstructions at a safe depth. Auto Guidance technology uses the desired depth and overhead clearance to calculate a route and suggest a path to follow.
Auto Guidance is for planning purposes only and does not replace safe navigation practices.
High-resolution relief shading combines color and shadow to give an easy-to-interpret view of bottom profile, making it easier to find artificial reefs, underwater shelves, and more. High-resolution relief shading is also available as a free downloadable feature via the ActiveCaptain app.
Depth Range Shading displays up to 10 depth ranges, enabling the view of a designated target depth at a glance.
Shallow Water Shading allows for shading at a user-defined depth, giving a clear picture of shallow waters to avoid.
BlueChart g3 Vision charts feature 1-foot contours that provide a more accurate depiction of bottom structure for improved fishing charts and enhanced detail in swamps, canals, and port plans.
High-resolution satellite imagery with navigational charts overlaid gives a realistic view of the surroundings, the most realistic charting display in a chartplotter, ideal for entering unfamiliar harbors or ports.
An underwater perspective showing a 3D representation of the bottom and contours as seen from below the waterline. Interface with sonar data for a customized view.
A 3D representation of the surrounding area both above and below the waterline.
Crystal-clear aerial photography shows exceptional detail of many ports, harbors and marinas and is ideal when entering unfamiliar ports.
¹Auto Guidance is for planning purposes only and does not replace safe navigation practices
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
| Feature BlueChart g3 Vision BlueChart g3 | ||
| Integrated Garmin and Navionics content | • | • |
| Auto Guidance¹ technology | • | • |
| Depth range shading | • | • |
| Up to 1' contours | • | • |
| Shallow water shading | • | • |
| Raster cartography² | • | • |
| High-resolution relief shading | • | |
| Unique 3-D views | • | |
| High-resolution satellite imagery | • | |
| Aerial photos | • |
¹Auto Guidance is for planning purposes only and does not replace safe navigation operations
²Raster cartography is available for selected countries. It cannot be viewed on echoMAP CHIRP and ECHOMAP Plus combos but can be viewed on mobile devices via the ActiveCaptain mobile app
BlueChart g3 Vision charts are delivered on a microSD/SD card preloaded with chart data. Garmin microSD/SD data cards are intended solely for use with compatible Garmin devices and are preformatted specifically for that purpose. Cards must not be reformatted, and the data on the card must not be modified, copied, or transferred to any other card or device. Each card is licensed for use on a single device at a time. For full microSD/SD card requirements and limitations, refer to the Garmin legal page.
BlueChart g3 Vision is designed for Garmin chartplotters that do not support the newer Garmin Navionics+ mapping format. Compatible devices include the GPSMAP 7x2, 9x2, 10x2, 12x2, and 12x2 Touch series, GPSMAP 7400/7600, GPSMAP 8400xsv/8600xsv, GPSMAP 85x0/8700 Black Boxes, ECHOMAP Plus 4x/6x/7x/9x, and ECHOMAP UHD series.
Chartplotters with built-in Garmin Navionics+ mapping cannot use BlueChart g3 charts. Use the Garmin chartplotter compatibility tool to confirm which format a specific device supports. High-resolution relief shading is also available as a free downloadable feature via the ActiveCaptain app.
The VPC020R provides chart coverage of Australia's southern coast from Brisbane to Geraldton, including Sydney, Melbourne, Adelaide, Perth, and the Great Australian Bight.
The VPC020R covers the Great Australian Bight along the southern coast, together with the ports of Adelaide, Melbourne, Sydney, and Perth. 1-foot contour detail and high-resolution relief shading support navigation of the Bight's long, exposed passages.
Both tiers include integrated Garmin and Navionics content, Auto Guidance, 1-foot contours, Depth Range Shading, and Shallow Water Shading. BlueChart g3 Vision adds high-resolution relief shading, high-resolution satellite imagery, and 3D views (FishEye and MarinerEye).
Compatible devices include the GPSMAP 7x2, 9x2, 10x2, 12x2 series, GPSMAP 7400/7600, GPSMAP 8400xsv/8600xsv, GPSMAP 85x0/8700, ECHOMAP Plus series, and ECHOMAP UHD series. Newer chartplotters with built-in Garmin Navionics+ mapping require Garmin Navionics+ or Garmin Navionics Vision+ charts instead. Contact ANS for help identifying the correct chart format for your device.
Auto Guidance is a planning tool that calculates suggested routes based on charted depth and overhead clearance parameters. Auto Guidance does not replace safe navigation practices, and mariners remain responsible for maintaining a proper lookout, monitoring real-time conditions, and exercising professional judgment.
Multiple BlueChart g3 Vision chart cards can be installed in the same Garmin chartplotter, provided the device has available card slots. Coverage transitions between adjacent regional cards are handled automatically within the chart display.
