Overview

The AS09 is a Rudder Feedback Sensor designed for seamless integration into an existing NMEA 2000 network.

This sensor converts the rudder’s angular movement into a digital signal, which is then transmitted across the NMEA 2000 network. The data provided by the AS09 can be utilized by autopilot systems, chart plotters, and multi-function displays (MFDs) to enhance navigation and control.

Key Features

• Included 5 meter drop cable for quick install into a pre-existing NMEA 2000 network.
• ±70° measurement range.
• Accurate to within  of ±0.5°
• Direct link to rudder arm for direct and instant data.
• Designed for use in harsh marine environments.

Description

The AS09 is a Rudder Feedback Sensor designed for seamless integration into an existing NMEA 2000 network using the included 5-meter drop cable.

This sensor converts the rudder’s angular movement into a digital signal, which is then transmitted across the NMEA 2000 network. The data provided by the AS09 can be utilized by autopilot systems, chart plotters, and multi-function displays (MFDs) to enhance navigation and control.

Hosting a powerful ±70° measurement range with a precision of ±0.5° the AS09 is an essential piece of equipment to aid in smoother sailing, precise movements and to prevent over-compensation when maneuvering.

The AS09 has been tested and designed for use within harsh marine environments, to enable the sailor to navigate the waters safe in the knowledge that the AS09 will keep you in control.

Features

• Included 5 meter drop cable for quick install into a pre-existing NMEA 2000 network.
• ±70° measurement range.
• Accurate to within  of ±0.5°
• Direct link to rudder arm for direct and instant data.
• Designed for use in harsh marine environments.

What’s Included?

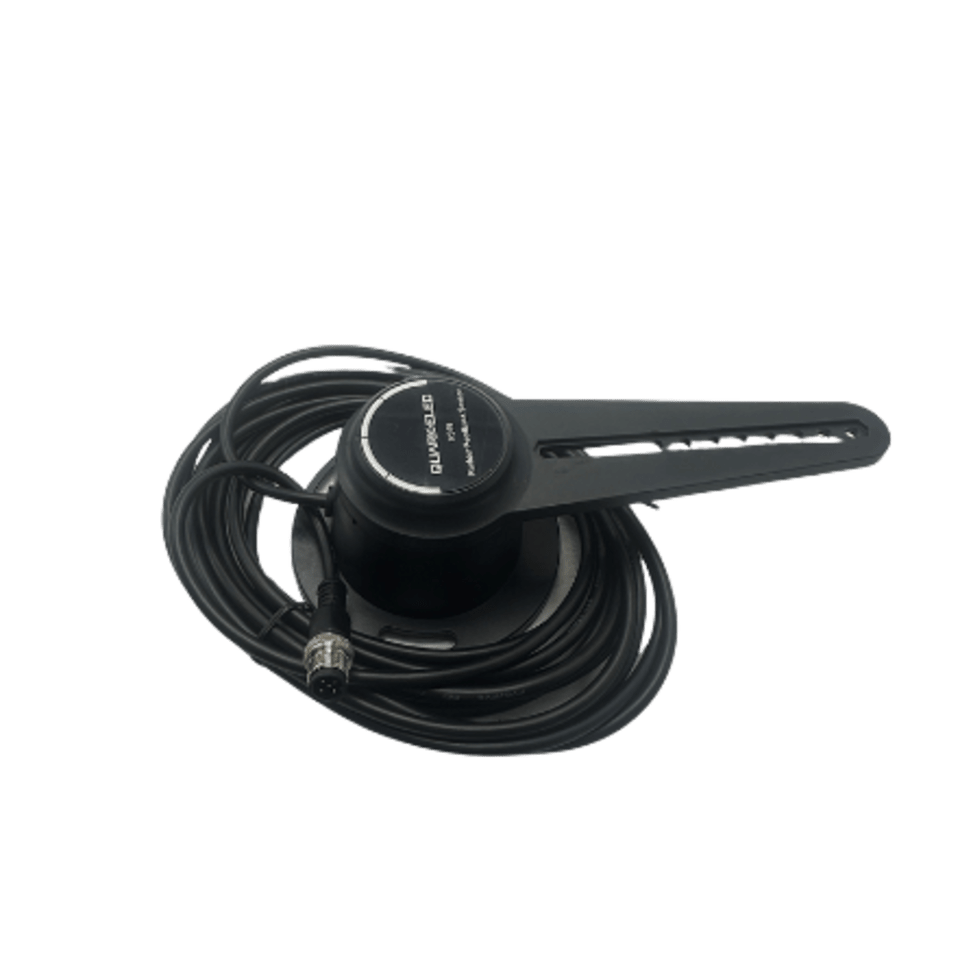

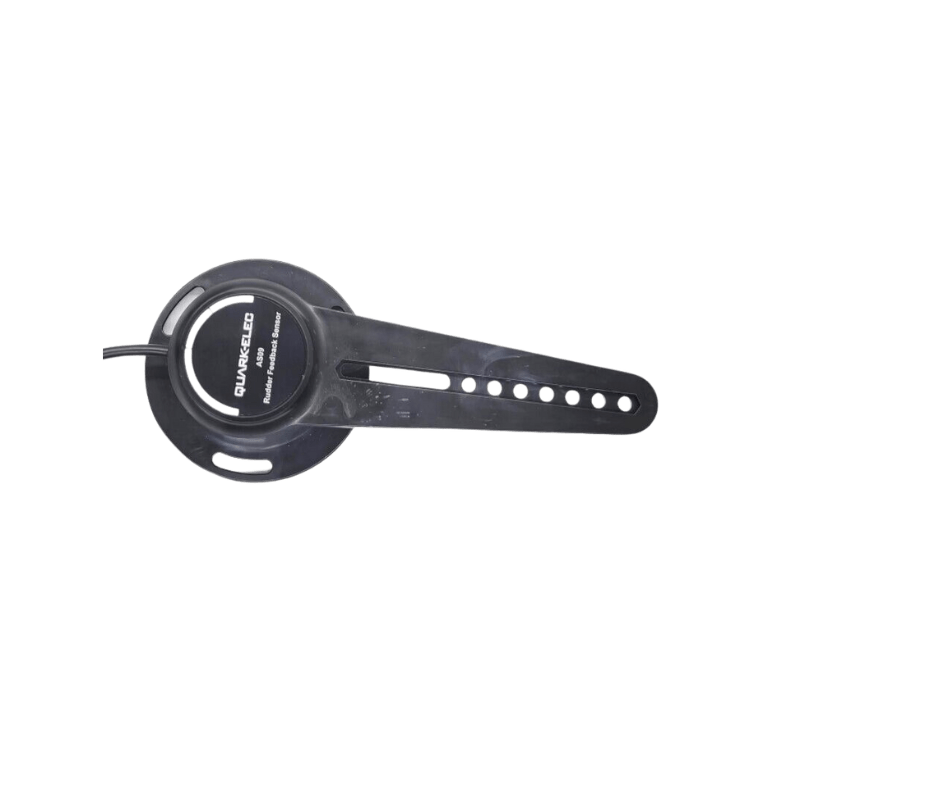

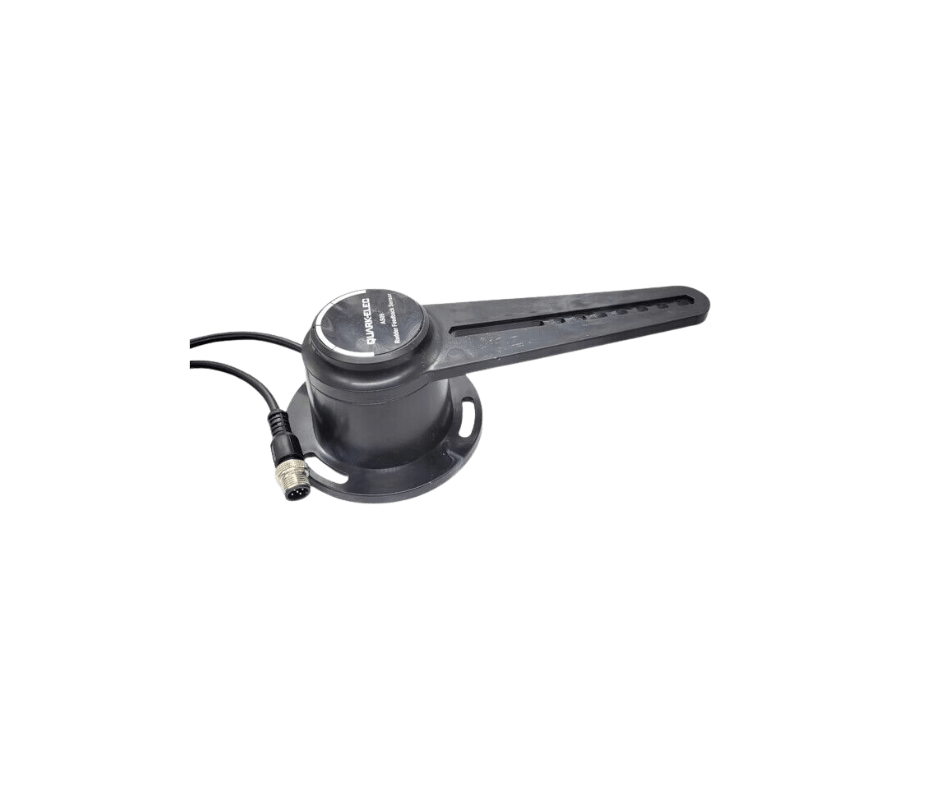

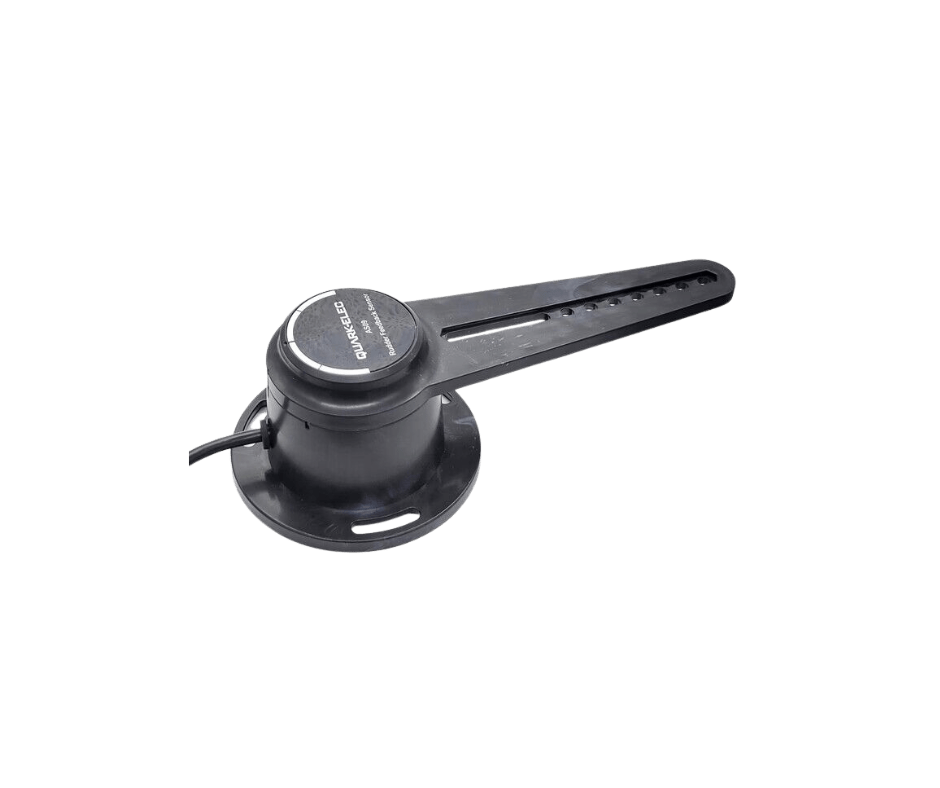

1 x QK-AS09, 5 meter drop cable included

1 x Linkage

Straight forward setup. No drivers, configuration or extra setup required.

Technical Specifications

Technical Specifications

Item	Specification
DC supply	12.0V (+/-10%)
Average supply current	90mA
Minimum supply current	58mA
Maximum supply current	145mA
LEN	3
NMEA 2000 Compatibility	Yes
Output NMEA 2000 PGNs	127245(Rudder)
Cable Length NMEA 2000	5.0 meters
Operating Temperature	-10°C to +65°C
Storage Temperature	-20°C to +70°C
Recommended Humidity	0 – 93% RH
